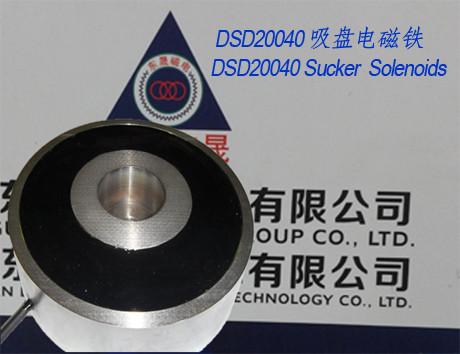

Electromagnets-sucker︱Sucker Solenoids︱Arsenal access control system Sucker Solenoids︱Fire Door Electromagnets---- DSD20040(IR-CUT︱Solenoid Valve︱ Solenoid pump︱ Electromagnets)

Sucker Solenoids can make great electromagnet power when charged with the application of electromagnetic conversion principles so as to control the movement, also known as Electromagnets or Electromagnets-sucker

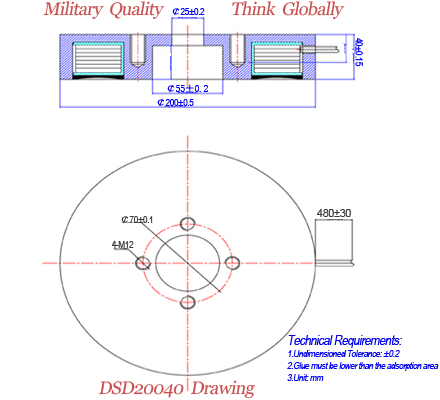

1. Main size: Diameter--200mm, Height-- 40mm

2. Feature:

1) Tubular design, magnetic shell

2) Super strong adsorption force

3. Service life: Ninety million times (Energized: 2s, De-energized: 2s)

4. Advantage:

1) Withstand strong impactNo.

2) High-temperature resistant

3) Explosion-proof, water-proof, rot-proof

4) Extremely long service life

5) Excellent physical performance

6) High adaptability to environment

5. Main purpose:

It is mainly used in arsenal access control system and other security system.

How to select the Electromagnets?

1. How much is the stroke?

2. How much is the force requirements?

3. How much is the duty cycle?

4. How is the working environment?

Ambient temperature / wet or dry / clean or dusty/ vibration / etc

5. What is the power supply?

Voltage/ DC or AC

Instructions:

The Solenoid &Electromagnet is a non-standard component, 100% ODM or OEM is welcome too, just feel free to contact us.

The more you tell us, the best we can do.
