The electromagnet is a simple holding device, when energized it will attach itself to a flat steel surface with high force. When de-energized the attracting force is switched off. Most common versions need to be energized to develop force, like our DSD4020 series of electromagnets.

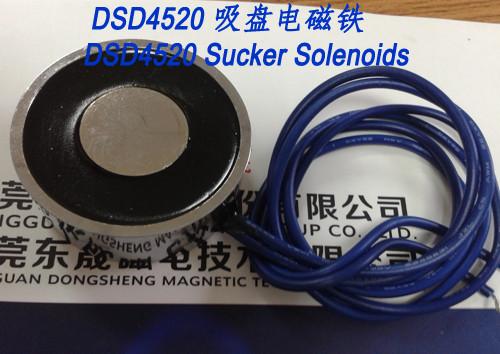

Electromagnets-sucker︱Tubular Sucker Solenoids︱Durable type Sucker Solenoids︱Tubular Electromagnets----DSD4520(IR-CUT︱Solenoid Valve︱Solenoid pump︱Solenoid Coil)

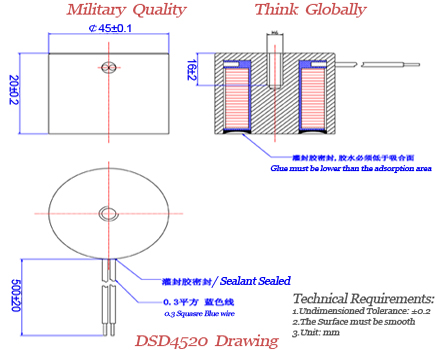

1. Main size: ￠45mm, H20mm

2. Service life: Ninety million times (Energized: 2s, De-energized:2s)

3. Performance:

1) With compact tubular design, magnetic shell, sealing structure

2) Also known as Electromagnets or Electromagnets-sucker

3) Has good aggregation and binding effect for the magnetic field

4) The metal parts are done for coating treatment, water-proof, dust-proof, rust-proof

5) The magnetizer was done for demagnetization by vacuum heat treatment, can reduce the hysteresis effect to minimum.

6) Excellent physical performance and service life

4. Application:

It is mainly used in binding machine, robot, medical equipments, entrance & exit door locking and release devices.

Instructions:

Electromagnet force ratings are based on ideal conditions. Variations in temperature, iron content, thickness and finish of the mating part will affect the holding force.
