Linear Solenoids︱ Open Frame Solenoids∣Push-Pull Solenoids----DSU1853( IR-CUT︱Solenoid Valve︱Solenoid Pump︱Electromagnets)

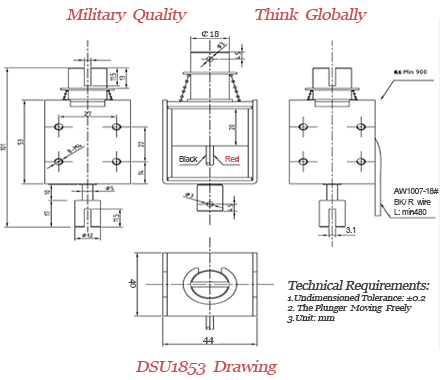

1. Basic size: plunger diameter--18mm, length--53mm

2. Performance:

1) U-frame design

2) Push type

3) Belongs to Open Frame Linear Solenoids

4) Long stoke

5) Long service life

6) Action reliability

7) Simple installation and wiring

8) Low cost

3. Operating voltage: 3~220V, DC

4. Stroke: 1~60 mm (The long stroke, the less force.), can to be selected any one stroke.

5. Current ratio:

Long time by power-on, suggest choosing 100% energized. (If it is electrified continuously over five minutes, can be done for 100% energized.)

6. Life expectancy: one million times (energized:1s, de-energized:1s)

7. Dielectric strength: between the coil and the framework AC1200 (50/60HZ) I seconds (10mA)

8. Temperature rise: below 65℃

9. Insulation class:

The temperature rise and operating environments determine the insulation class what the solenoids need to.

There is the classification as the following:

Class A=105℃ Class E=120℃

Class B=130℃ Class F=155℃

Class H=180℃ Class N=200℃

Class C=220℃

10. Application:

It is wide used in electric door, electric machinery and so on, and it is the preferred Solenoid

for the tripod turnstile.
