Linear Solenoids︱Open Frame Solenoids︱ Push-Pull Solenoids----DSU1040 (IR-CUT︱ Solenoids ︱Solenoids valve︱Solenoid pumps︱Electromagnets)

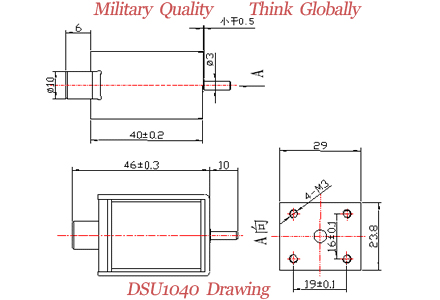

1. Main size: ￠10mm*L40mm

2. Performance

1) U-frame design

2) Push type, belongs to open frame Linear Solenoids

3) Simple installation and wiring

4) Excellent durable performance

5) Action reliability, long stroke, Long service life

3. Withstanding voltage: between the coil and the framework AC1200 (50/60HZ) I seconds (10mA)

4. Temperature rise: below 65℃

5. Service life: 1.5million times (Energized: 2s, De-energized:2s)

6. Operating voltage: 3~48V, DC

7. Environment temperature: -10~180℃

8. Application:

It is mainly used in channel entrance guard system, ATM machines, toys, robots, medical equipment, electronic locks, lockers and other automatic control system.

How to select the Open Frame Linear solenoids?

1. How long is the stroke movement?

Travel in mm / inches

2. How much is the force requirement?

3. How much is the duty cycle?

On time / off time ratio

4. How is the working environment?

Ambient temperature / wet or dry / clean or dusty/ vibration / etc.

5. What is the power supply?

Voltage / AC or DC

6. What is the installation method?

Space envelope / mounting preference / plunger design

Instructions:

In case you cannot find the right product for your application within our standard products we are happy to adapt existing design with respect to electrical or mechanical properties or develop completely new products for you.
