Linear Solenoids︱Tubular Solenoids︱Push type Solenoids︱Enclosed Frame Linear Solenoids︱Textile machines Tubular Solenoids︱Swing machines Tubular Solenoids----DSO1634 ( IR-CUT︱Solenoid Valve︱Electromagnets︱Solenoid Pump)

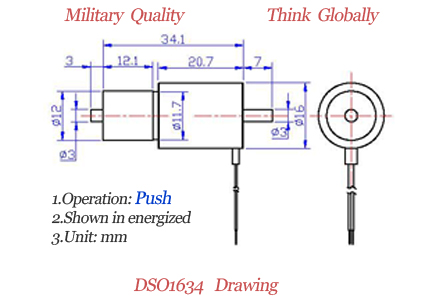

1. Main size: D16mm, L34mm

2. Feature:

1) With cylinder shape design, no MFL

2) Push type

3) Enclosed frame Linear Solenoids

3. Life: one million times (Energized: 2s, De-energized: 2s)

4.Advantage:

1) Compact structure

2) Low consumption

3) Long service life

4) Flexible motion, rapid response

5) High adaptability to environment

6) Durable in use

5. Application:

This kind of Tubular Solenoid is mainly used in the devices with poor working condition, such as industrial sewing machines and textile machines.

Technical Considerations for selecting enclosed frame Linear Solenoids &Tubular Solenoids:

1) The stroke required of Tubular Solenoid ?

Specify Push or Pull operation and movement required

2) Holding fore required of the Tubular Solenoid?

Specify initial requirements

3) Power source of the Solenoids?

Voltage/ DC or AC

4) Duty cycle, installing method

5) Ambient Temperature of the Tubular Solenoid?

Specify working ambient temperature
