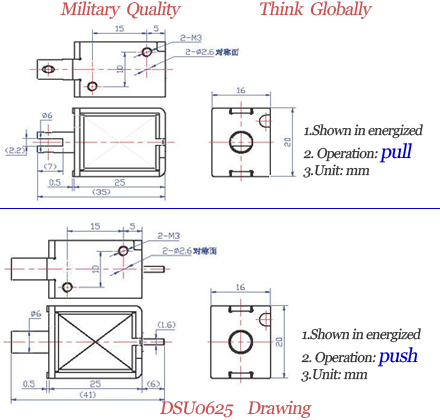

1. Basic size: ￠6mm, L25mm

2. Feature:

1) U-frame design

2) Linear Solenoids

3) Operation: push or pull

Technical data of the Open Frame Solenoids

3. Service life: 0.8 million times (energized: 2s, de-energized: 2s)

4. Advantage:

1) Easy to install

2) Moving Flexible

3) High-temperature resistant

4) Special treatments for surface

5) High service life

5. Application:

It is mainly used in readers, ATM machines, toys, robots, medical equipment, detectors, electronic locks, lockers, and other automatic control system

Technical considerations for selecting Open Frame Solenoids?

1. The stroke required of Open Frame Solenoids ?

Specify Push or Pull operation and movement required

2. Holding fore required of the Open Frame Solenoids?

Specify initial requirements

3. Power source of the Solenoids?

Voltage/ DC or AC

4. Duty cycle, installing method

5. Ambient Temperature of the Open Frame Solenoids?

Specify working ambient temperature

Instructions:

The Solenoid&Electromagnet is a non-standard component, 100% ODM or OEM is welcome too, just feel free to contact us.

The more you tell us, the best we can do.
