Solenoid valve︱Pneumatic control Solenoid Valve︱Top water dispenser Solenoid Valve

    Buy cheap Solenoid valve︱Pneumatic control Solenoid Valve︱Top water dispenser Solenoid Valve from wholesalers

    Buy cheap Solenoid valve︱Pneumatic control Solenoid Valve︱Top water dispenser Solenoid Valve from wholesalers
    • Buy cheap Solenoid valve︱Pneumatic control Solenoid Valve︱Top water dispenser Solenoid Valve from wholesalers

    Solenoid valve︱Pneumatic control Solenoid Valve︱Top water dispenser Solenoid Valve

    Ask Lasest Price
    Brand Name : Dongsheng
    Certification : The Third Party
    Model Number : DSV0830
    Price : Negotiable
    Delivery Time : 15 days
    Payment Terms : T/T
    Supply Ability : 100000 Pcs/Month
    • Product Details
    • Company Profile

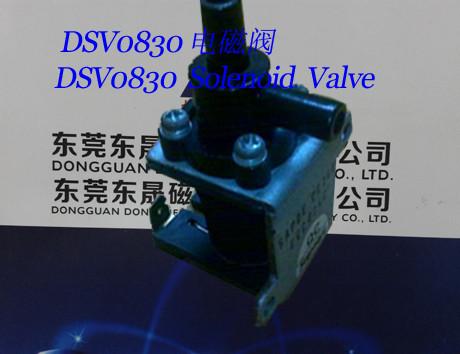

    Solenoid valve︱Pneumatic control Solenoid Valve︱Top water dispenser Solenoid Valve


    Solenoid valveMiniature Solenoid ValveTop water dispenser Solenoid ValvePneumatic control Solenoid ValveAutomatic selling machines Solenoid Valve----DSV0830 (SolenoidsIR-CUTSolenoid pumpElectromagnetsSolenoid Coil)

    1. Type: 2/2 way

    2. Life expectancy: 1.2 million times (Energized: 1s, De-energized: 2s)


    General Specifications of the Solenoid Valve
    No.Name

    Result

    1Operating Voltage

    6~48V,DC

    2Dielectric Strength

    AC1500V(50/60Hz)1 min

    3Operating Pressure

    0~0.3Mpa

    4Displacement

    >0.7L/min

    5Environment Temp.

    -10℃~140℃

    6Temp. Rise

    DC12V, below 65℃

    7Weight

    85g


    3. Feature:

    1) Pneumatic control

    2) Automatic control water system and other liquid system

    3) Special material selection

    4) Optimal structure designing

    5) High-temperature resistant

    6) Long service life

    4. Application:

    It is mainly used in automatic selling machines, top water dispenser and the other pneumatic control system.

    Technical consideration for selecting the Solenoid Valve:

    1) Current capacity & displacement of the Solenoid Valve?

    2) Operating pressure of the Solenoid Valve?

    3) Duty cycle, Power supply?

    Voltage/ AC or DC

    4) Operating medium?

    Gas, water or other liquids

    Instructions:

    In case you cannot find the right Solenoid Valve for your application within our standard products, we are happy to adapt existing design with respect to electrical or mechanical properties or develop completely new Solenoid Valves for you.


    Quality Solenoid valve︱Pneumatic control Solenoid Valve︱Top water dispenser Solenoid Valve for sale
